ESCT-B

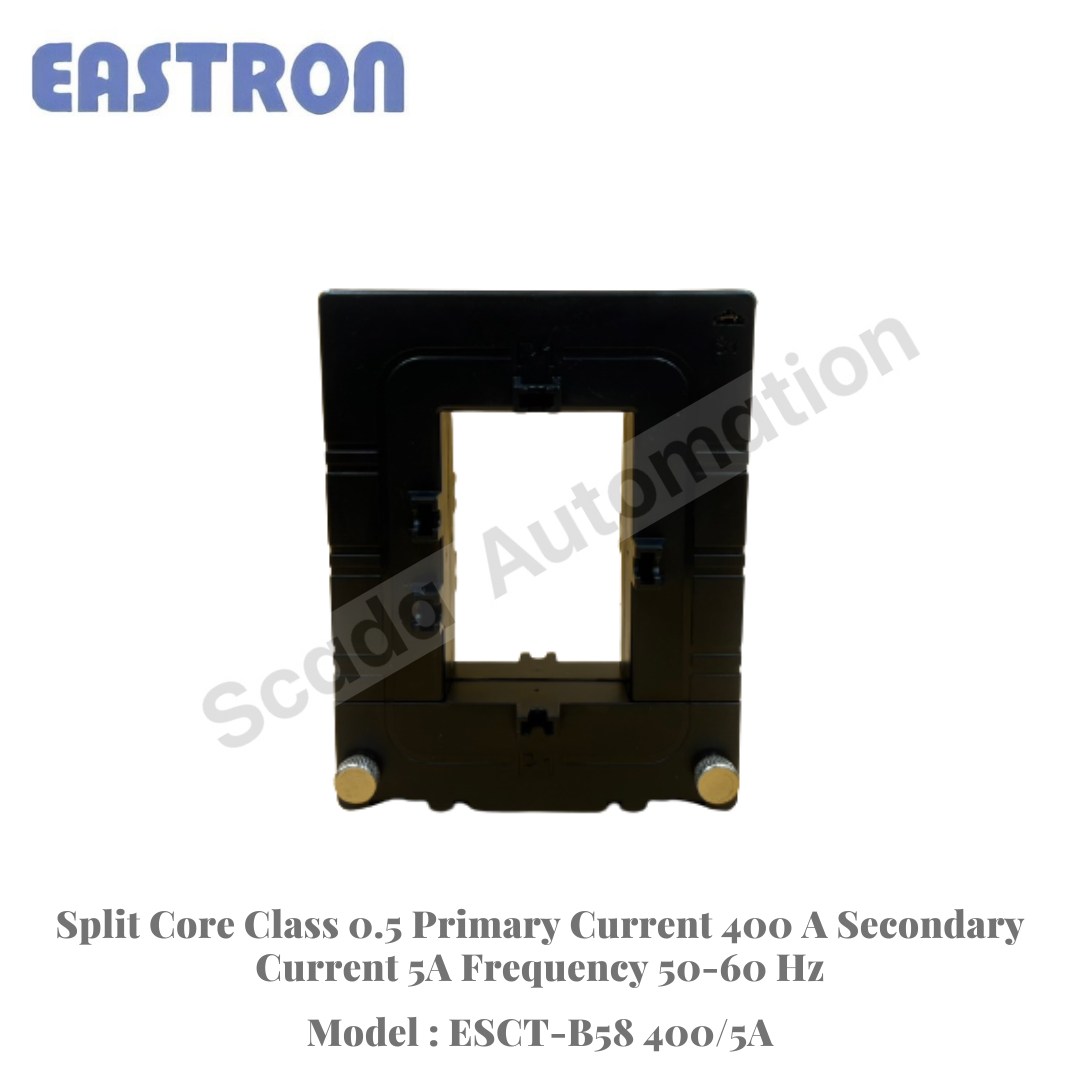

Split Core Current Transformer
- Split Core Class 0.5 Primary Current 400 A Secondary Current 5A Frequency 50-60 Hz2
- Secondary Output 5A
- Two Building Fixing Methods: Base; Busbar Mounting
- Wide Inner Window, Allowing Clamping of Big Cables
- Standard: IEC60044-1, EN60044-1, VDE0414-44-1, GB1
- The Eastron ESCT-B series split core current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken off line and disconnected for CT installation. This method permits a safer easy and portable current measurement.
