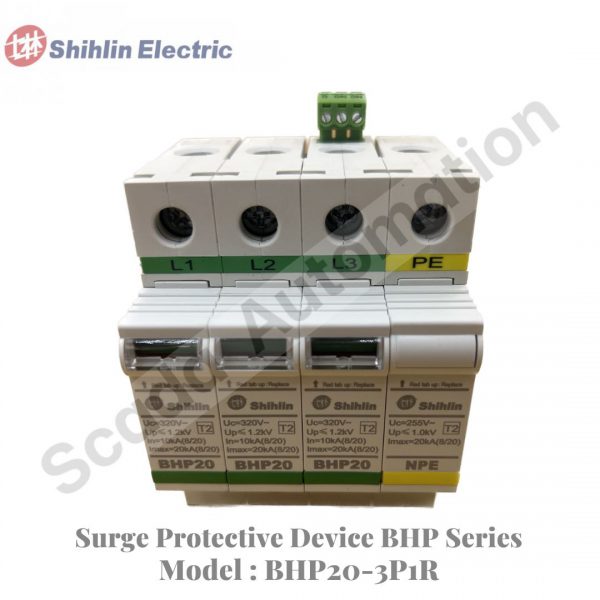

BHP20-3P1R

Features
Standards: IEC61643, IEC61312-1, 61643-1, 61000-5-6, VED0675,UL14492-2,UL1283,CSA22.2
Modular design, anti-error assembling design, withdraw able surge arrestor allow quick replacement of the failed module (end of life) without cutting the power.
With standard DIN rail (35mm) installation, easy to install and speed up the replacing process.
The IP code dustproof and waterproof level is IP20.
Meets the IEC 61643-11 standard and CE declaration.
Voltage impulse counter (AC110V/220V) is available for monitoring maximum of 99 counts.
Has memory function, non-return to zero after power failure.
Specification
Din rail installation
Class II
Max. discharge current Imax/Iimp: 20kA (8/20μs)
Pole: 1P / 1P+1 / 1P+N / 3P / 3P+1 / 3P+N
Uc(AC): 320V
In(8/20μs): 10kA
